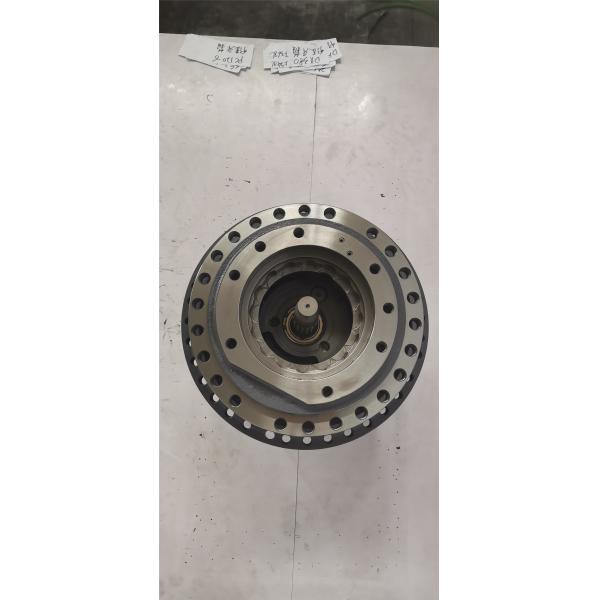

Belparts Excavator Travel Gearbox DX380 DX380LC Travel Reduction Gear K1012069 for doosan
Product Description
Part Name:Excavator Travel reduction gear
Appliion:DX380 DX380LC
Part Number:K9005496
Place of Origin:Guangzhou China
Warranty:6 Months
Weight:380KG
Brand:Belparts
Packing:45*54*56
| Appliion | Crawler Excavator |
| Part name | TRAVEL GEARBOX |
| Model | DX380 DX380LC |
| Package | 67*67*45 |
| Brand | Belparts |
| Payment term | T/T, paypal, trade assurance or as required |
| After sales service | Online |
| # | Part No | Part Name | Comment | Qty. | Price request |
| 37 | S6510420 | RING, RETAINING | | 4 | |
| 44 | S6500450 | RING, SNAP | | 3 | |
| 45 | 124-00150 | CLIP | | 1 | |
| 46 | 124-00151 | CLIPW | | 1 | |
| 47 | 1.115-00248 | NUT, RING | 3 kg | 1 | |
| 1 | 104-00035 | GEAR, RING | 33 kg | 1 | |
| 2 | K9005498 | HOUSING | | 1 | |
| 4 | 1.430-00216 | COVER, SIDE | 12 kg | 1 | |
| 5 | K9005495 | CARRIER NO.1 | 9 kg | 1 | |
| 6 | 1.230-00015 | CARRIER NO.2 | 10 kg | 1 | |
| 9 | K9005496 | GEAR, SUN NO.1 | 2 kg | 1 | |
| 10 | 404-00081 | GEAR, SUN NO.2 | 2 kg | 1 | |
| 11 | 404-00082 | GEAR, SUN NO.3 | 6 kg | 1 | |
| 12 | K9005494 | GEAR, PLANETARY NO.1 | 4 kg | 3 | |
| 13 | 1.403-00065 | GEAR, PLANETARY NO.2 | 1 kg | 3 | |
| 14 | 104-00036 | GEAR, PLANETARY NO.3 | 3 kg | 4 | |
| 16 | K9002264 | PIN NO.2 | 1 kg | 3 | |
| 17 | 123-00285 | PIN NO.3 | 1 kg | 4 | |
| 18 | 1.412-00121 | PLATE, SIDE E | | 3 | |
| 19 | 1.412-00117 | PLATE, SIDE A | | 6 | |
| 20 | 412-00038 | PLATE, SIDE F | | 8 | |
| 21 | 1.216-00017 | CAGE, NEEDLE | | 3 | |
| 22 | 1.216-00015 | CAGE, NEEDLE | | 3 | |
| 23 | 1.216-00018 | CAGE, NEEDLE | | 4 | |
| 24 | 1.115-00232 | RING, INNER | | 3 | |
| 25 | 110-00126 | BUSH, FLOATING | 1 kg | 4 | |
| 26 | 114-00347 | RING, THRUST 60 | | 2 | |
| 27 | 114-00348 | RING, THRUST 90 | | 1 | |
| 29 | S2222671 | BOLT, SOCKET M16X100 | | 28 | |
| 30 | S2208871 | BOLT HEX SOCKET HD CL | | 12 | |
| 32 | 2181-1890D4 | PLUG, RECHECK | PF1/2 | 3 | |
| 33 | 109-00145 | BEARING, ANGULAR | 7 kg | 2 | |
| 34 | 180-00345 | SEAL, FLOATING | 3 kg | 1 | |
| 35 | 1.114-00054 | SHIM 1.0 | | 1 | |
| 35 | 1.114-00053 | SHIM 0.9 | | 1 | |
| 35 | 1.114-00051 | SHIM 0.8 | | 1 | |
| 35 | 1.114-00049 | SHIM 0.7 | | 1 | |
| 35 | 1.114-00047 | SHIM 0.6 | | 1 | |
| 35 | 1.114-00045 | SHIM 0.5 | | 1 | |
| 36 | 1.123-00081 | PIN, SPRING | | 3 | |
| 53 | 1.114-00306 | WASHER 1.0t | | 1 | |
| 54 | K9006417 | SCREW, SET | | 6 | |
| 81 | 1.180-00162 | O-RING | | 1 | |
| 82 | 1.180-00163 | O-RING | | 1 | |
| 83 | S8000181 | O-RING | 1BP18 | 3 | |
| 901 | K9005518 | CARRIER NO.1 SUB ASS'Y | 20 kg | 1 | |
| 902 | 230-00044 | CARRIER NO.2 SUB ASS'Y | | 1 | |
